Product Description
Bring your golf simulator to life with the BenQ LK936ST 4K UHD Short-Throw Laser Projector, a premium projector designed specifically for large, immersive golf simulation and home entertainment environments. With true 4K UHD resolution, 5,100 ANSI lumens, and 92% Rec.709 color coverage, the LK936ST delivers sharp, vibrant, and highly detailed images across large screens, even in rooms with ambient light.
The LK936ST combines powerful laser brightness with BenQ's dedicated Golf Mode, which is designed to produce natural-looking greens and blues for a more realistic golf simulation experience. Its 3,000,000:1 contrast ratio and 30-bit color processing help deliver excellent image depth, detail, and color performance.
For golf simulator installations, the projector's 0.81–0.89:1 short-throw ratio and 1.1× optical zoom allow it to create a massive image while maintaining a relatively short projection distance. BenQ specifies a 200-inch 4K image from approximately 11.8–12.8 feet, helping keep the projector out of the golfer's swing area while reducing unwanted shadows on the screen.
Installation flexibility is another major advantage. The LK936ST features ±60% vertical and ±23% horizontal lens shift, allowing installers to position the projector with greater freedom while preserving native image quality. 3D keystone correction up to ±40° vertically, horizontally, and rotationally, along with Corner Fit, provides additional flexibility when precise projector alignment isn't possible.
The LK936ST uses a laser light source rated for up to 20,000 hours in Normal mode, reducing maintenance and eliminating the need for traditional lamp replacements. Its laser design is well suited for golf simulator environments where the projector may be used frequently for both practice and entertainment.
Beyond golf simulation, the LK936ST is an excellent choice for home theaters, sports viewing, gaming, and other large-screen applications. With HDMI 2.0b, HDBaseT, DisplayPort, LAN, and eARC support, it offers the connectivity and flexibility needed for both home and professional installations.
Specifications
| Feature | Details |
|---|---|
| Model | BenQ LK936ST |
| Projector Type | 4K UHD Short-Throw Laser Projector |
| Projection Technology | DLP |
| Resolution | 4K UHD (3840 × 2160) |
| Brightness | 5,100 ANSI Lumens |
| Native Aspect Ratio | 16:9 |
| Contrast Ratio | 3,000,000:1 (FOFO) |
| Display Color | 30-bit / 1.07 Billion Colors |
| Color Coverage | 92% Rec.709 |
| Light Source | Laser |
| Light Source Life | Up to 20,000 Hours (Normal Mode) |
| Throw Ratio | 0.81–0.89:1 |
| Zoom Ratio | 1.1× Optical Zoom |
| Lens Shift | Vertical ±60% / Horizontal ±23% |
| Keystone Correction | 3D, ±40° Vertical / ±40° Horizontal / ±40° Rotation |
| Corner Fit | Yes |
| Golf Mode | Yes |
| Maximum Projection Size | Up to 300" |
| 200" Projection Example | Approximately 11.8–12.8 ft |

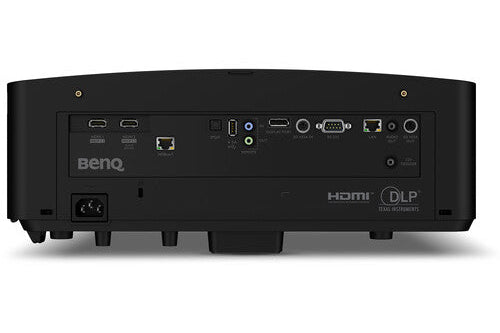

| HDMI | 2 × HDMI 2.0b / HDCP 2.2 |
| DisplayPort | 1 × DisplayPort |
| HDBaseT | 1 × RJ45 |
| LAN | 1 × RJ45 |
| USB | 1 × USB Type-A |
| Audio Return | HDMI eARC |
| Audio | 10W Speaker |
| Installation | 360° Rotation |
| Projection System | DLP Single 0.47" 4K |
| Dimensions | 16.4 × 6.5 × 13.8 in |
| Weight | Approx. 15.4 lbs / 7 kg |
Specifications verified against BenQ's current LK936ST documentation.
Key Features
• True 4K UHD resolution (3840 × 2160) for exceptional detail across large simulator screens
• 5,100 ANSI lumens for bright, vivid images in rooms with ambient light
• Dedicated Golf Mode optimized for natural-looking greens and blues
• 92% Rec.709 color coverage for accurate, vibrant color reproduction
• 3,000,000:1 contrast ratio for strong image depth and detail
• Long-lasting laser light source rated for up to 20,000 hours
• 0.81–0.89:1 short-throw ratio for large images from relatively short distances
• 1.1× optical zoom for additional installation flexibility
• ±60% vertical and ±23% horizontal lens shift for precise image positioning
• 3D keystone correction up to ±40° on vertical, horizontal, and rotational axes
• Corner Fit for additional image alignment flexibility
• Supports projection sizes from 30" up to 300"
• HDMI 2.0b, DisplayPort, and HDBaseT for flexible connectivity
• HDBaseT transmission up to 100 m / 328 ft for professional installations
• HDMI eARC for high-quality audio connectivity
• 360° installation capability for greater mounting flexibility
• Low 16.7 ms input lag at 4K/60Hz for responsive gaming and interactive applications
What's Included
• BenQ LK936ST 4K Laser Projector
• Remote Control with Batteries
• Power Cord
• HDMI Cable
• Installation Guide
• Warranty Documentation
Optional accessories, including 3D glasses and a universal ceiling mount, are available separately.
Ideal For
• Home golf simulator setups
• Premium golf simulator rooms
• Commercial golf simulator installations
• Large golf impact screens
• Dedicated simulator rooms
• Golf entertainment spaces
• Home theaters
• Sports viewing rooms
• Large-screen gaming
• Professional AV installations
• Golfers looking for premium 4K image quality
Why Choose the BenQ LK936ST?
The BenQ LK936ST combines true 4K UHD resolution, powerful 5,100-lumen laser brightness, short-throw projection, and golf-optimized color performance to create an immersive simulator experience. Its dedicated Golf Mode, 92% Rec.709 color coverage, and 3,000,000:1 contrast ratio help deliver vivid and detailed course visuals across large impact screens.
For simulator builders, the combination of 0.81–0.89:1 throw ratio, 1.1× optical zoom, extensive lens shift, and 3D keystone correction provides considerable flexibility when determining projector placement. Whether you're building a premium home golf simulator or outfitting a commercial facility, the LK936ST delivers the brightness, detail, color accuracy, and long-term laser reliability needed for a professional-quality experience.
